CLAMP-ON FLOWMETERS FOR PROCESS OPTIMIZATION.

Process Manufacturing – The ever-increasing global competition, stricter environmental regulations and rising energy and raw material prices have made efficient manufacturing processes essential for a successful and sustainable economic position. Process optimization is a hot topic.

Shutting down a production process is complicated and expensive, and any modification to a pipe(line) can cause leaks.

OUR SOLUTION : ULTRASONIC CLAMP-ON FLOW MEASURING

  • Non-invasive : Measuring from the outside of (existing) pipes
  • Cost-effective : No manufacturing process interruptions
  • Super fast reaction time : 70 m / s
  • Leak detection : Preventing leakage problems and pollution
  • Diameter range : 10 – 6500 mm

An important advantage of an ultrasonic clamp-on flowmeter is that its sensors are clamped on the outside of the pipe. Therefor there is no contact with the medium inside, no pressure loss and the risk of leaks is minimized. Moreover, your ‘just in time’ production is not being endangered, because there are no downtime costs due to defects of inline flowmeters or for installing them.

Our ultrasonic clamp-on flowmeters have a very fast response time of 70 m / s and provide a fast reading of the flow. These speeds are ideal for pulsating flow rates or injection applications.

The installation and commissioning of an ultrasonic measuring system also take little time.

Our portable and stationary ultrasonic clamp-on flowmeters can be used at various locations in the plant, for various pipe materials, various pipe diameters from 10 mm to 6500 mm and for various fluids. This speeds up testing procedures and makes your R&D department more cost-efficient.

Additional features enable our instruments to be used for more than just flow metering. For example, by using the optional speed-of-sound measurement function you are able to detect fluid changes such as concentration and density. Ideal for multi-product pipelines (HPI), for recognizing different liquids.

When equipped with PT100 clamp-on temperature sensors, our flow meters are also capable of providing heat quantity measurements to determine thermal energy consumption e.g. on HVAC (heating, ventilation, air conditioning) systems.

  • R&D test procedures
  • Engine performance testing (automotive)
  • Injection molding machines measuring
  • Consumption and discharge monitoring (cold / heat energy and water)
  • Pump and inline flowmeter performance verification
  • Pump cavitation, leaking valves detection
  • Hydraulic system testing
  • Refrigeration pipe monitoring
  • Process automation

Pump performance check (video)

  • Bostik – Total
  • Ford Motor Company
  • Toyota UK
  • Caterpillar
  • Corus
  • Mini
  • Dürr
Proces | Productie - KATflow 150
KATFLOW 150

Advanced fixed installation clamp-on ultrasonic flowmeter

Proces | Productie - KATflow 200
KATFLOW 200

Hand-held clamp-on ultrasonic flowmeter

Proces | Productie - KATflow 230
KATFLOW 230

Portable dual channel clamp-on flowmeter

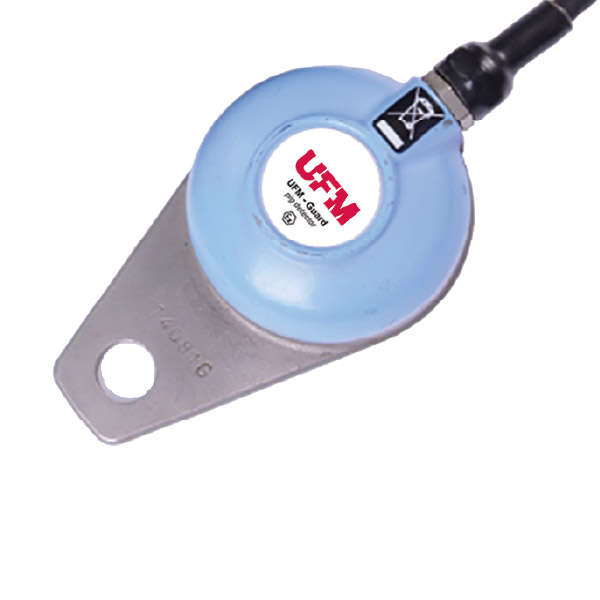

Proces | Productie - UFM Guard
UFM Guard

Clamp-on ultrasonic pig detector

More PORTABLE FLOWMETERS
More FIXED INSTALLATION FLOWMETERS
