CLAMP-ON FLOWMETERS FOR FOOD & BEVERAGE SECTOR.

Food and Beverage – Global competition, ever-increasing tariffs for raw materials and energy, high costs for water consumption and the disposal of wastewater, it all makes an efficient production process essential for a successful market position within the food sector.

The detailed monitoring of water consumption and the processing of wastewater, with non-invasive clamp-on flowmeters, is a (cost) effective solution. Because pipesystems are not opened up for the installation, process downtimes are avoided.

Our range includes both fixed and portable flowmeters to best suit your specific purposes and applications, regardless of fluid type, tubing or diameter.

OUR SOLUTION. CLAMP-ON ULTRASONIC FLOWMETERS.

  • External monitoring and spot measurements of internal flow processes
  • No infringement in (existing) pipes
  • No compromises on hygiene and sterility
  • Stainless steel sensors with high IP rating
  • Diameter range : 3 – 6500 mm
  • Easy and fast installation
  • On-site support

  • Suitable for measuring both flow rate and volume
  • No bacterial growth in the pipe’s interior
  • No pressure loss, no leakage problems
  • Almost all types of pipe materials
  • Diameter range : 3 – 6500 mm
  • Ideal for point measurements (KATflow 200 and KATflow 230)
  • Suitable for permanent measurements (KATflow 150 and SONOFLOW CO.55)
  • Can also be used for monitoring CIP processes and measuring thermal energy consumption

The clamp-on sensors of our ultrasonic flowmeters are installed on the outside of the pipe. As a result, there are no intrusions at any time which could allow bacterial growth inside the pipe.

The clamp-on sensors are suitable for temperatures from -30 ° C to at least 600 ° C. As a result, ultrasonic flowmeters can be used for almost any application related to the production of food and drinks, such as the cooling and heating steps.

The KATflow 230 and KATflow 150 provide the ability to monitor temperature changes of almost any flowing liquid. Whether you want to determine the cooling rate during the cooling of the wort, for example, measure the temperature-related energy consumption, or fine-tune heating or cooling systems for higher system efficiency.

  • (Dairy) livestock, poultry and pig farms
  • Agriculture and horticulture
  • Fishing
  • Breweries and distilleries
  • Performance verification of pumps, valves and inline flowmeters
  • Consumption monitoring (water, raw materials)
  • Flow metering of liquid products and ingredients
  • Monitoring of CIP flush processes

  • Coca Cola Company
  • Kraft Heinz Company
  • Nestle
  • Heineken
  • PepsiCo
  • Mars
Levensmiddelen - ultrasone clamp-on flowmeters | U-F-M b.v.
KATFLOW 150

Advanced fixed installation clamp-on ultrasonic flowmeter

Levensmiddelen - ultrasone clamp-on flowmeters | U-F-M b.v.
KATFLOW 200

Hand-held ultrasonic flowmeter

Levensmiddelen - ultrasone clamp-on flowmeter | U-F-M b.v.
KATFLOW 230

Transportable clamp-on ultrasonic flowmeter

Levensmiddelen - ultrasone clamp-on flowmeters | U-F-M b.v.

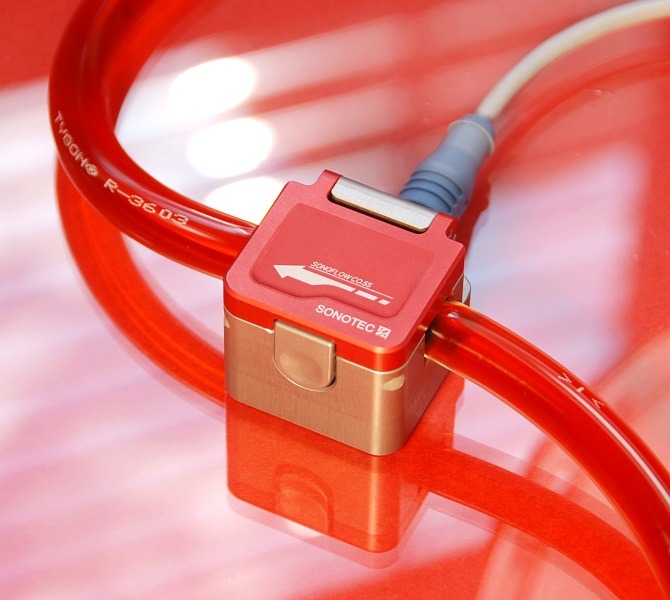

SONOFLOW CO.55

Compact clamp-on flow sensor for flexible tubes

More PORTABLE FLOWMETERS
More FIXED INSTALLATION FLOWMETERS
